The OpenSense website only had a guide of how to do this via Legacy which does not exist on the new firewall IPsec VTI – connect to Microsoft Azure — OPNsense documentation

OPNSense Side

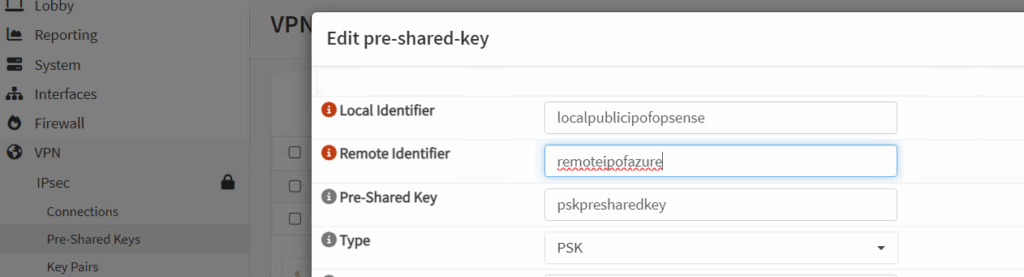

Setup PreShared Key

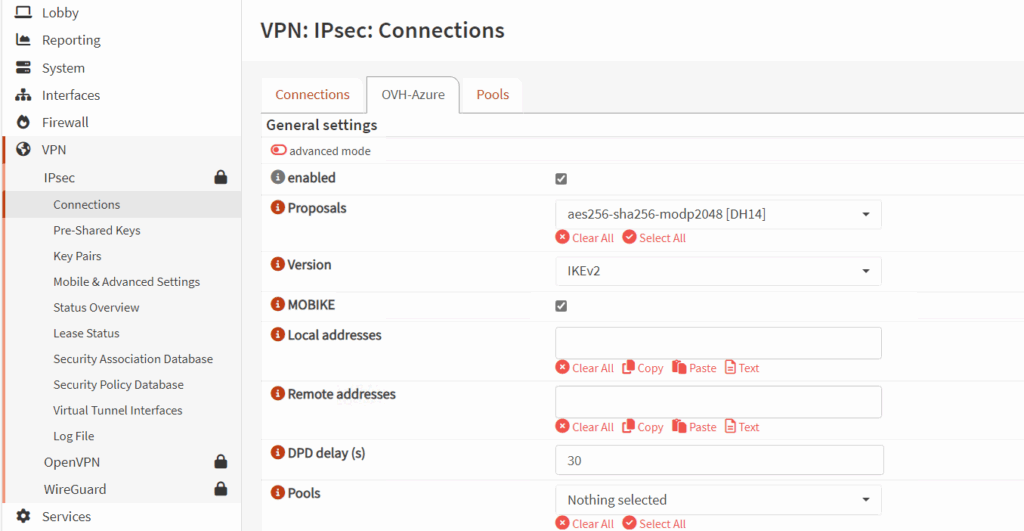

Setup Connection

Local Address : Open Sense Public IP

Remote Address : Azure VPN Gateway IP

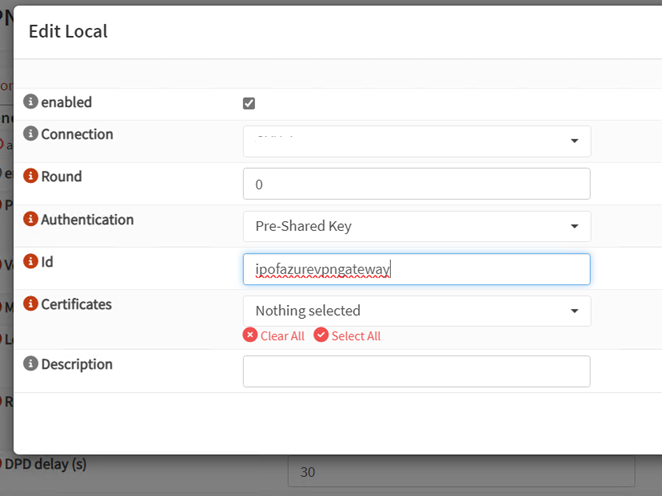

Add Local and Remote Authentication

Connection Name should be the one you created above

ID will be the IP of the Azure Gateway

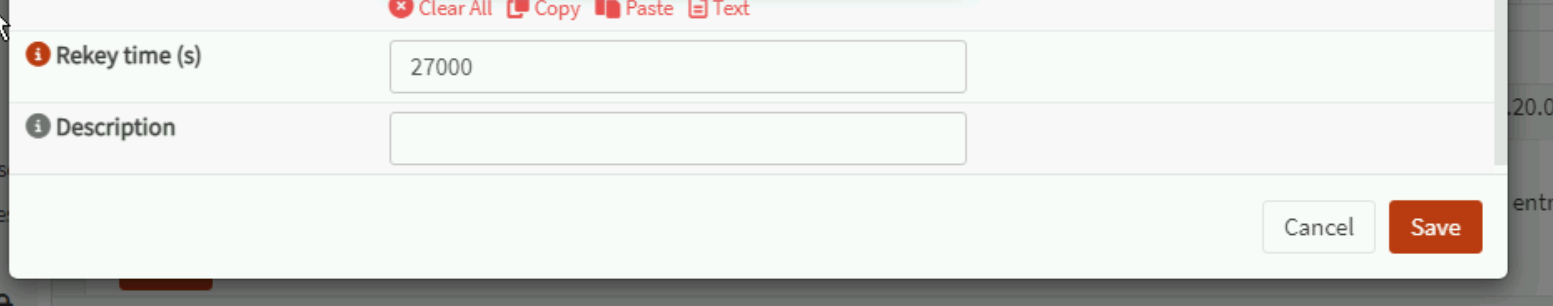

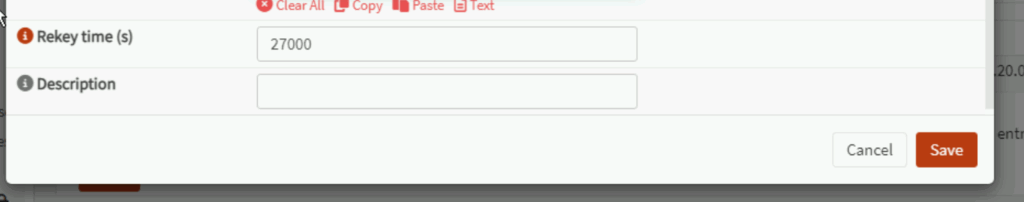

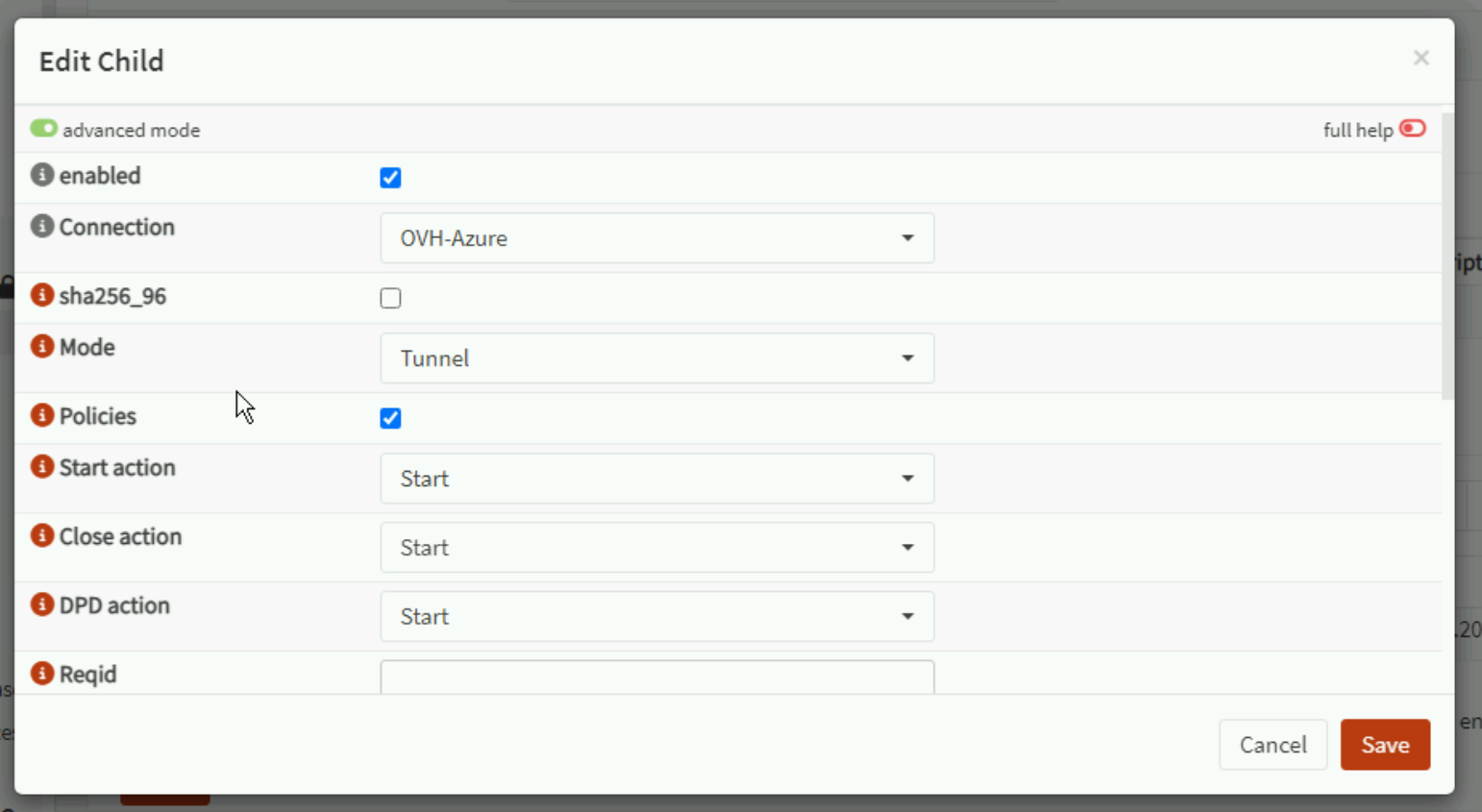

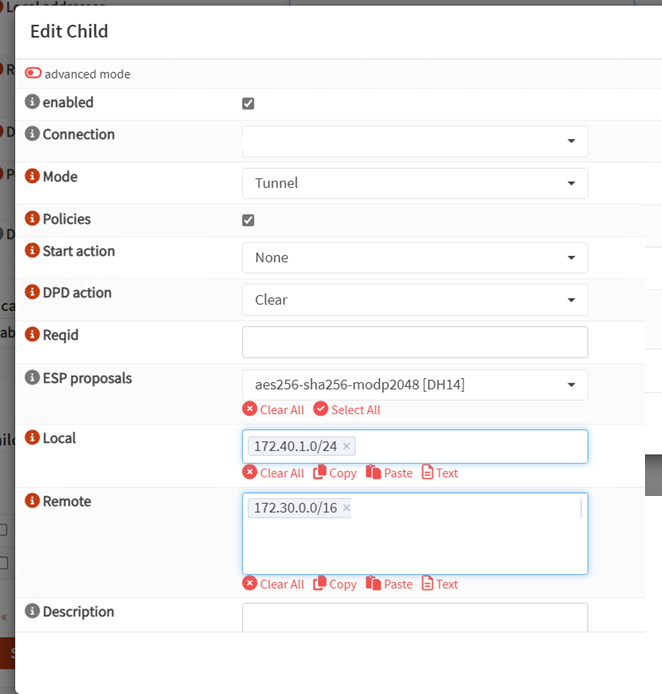

Add the Child

Local : Local IP Subnets

Remote : Remote IP Subnets

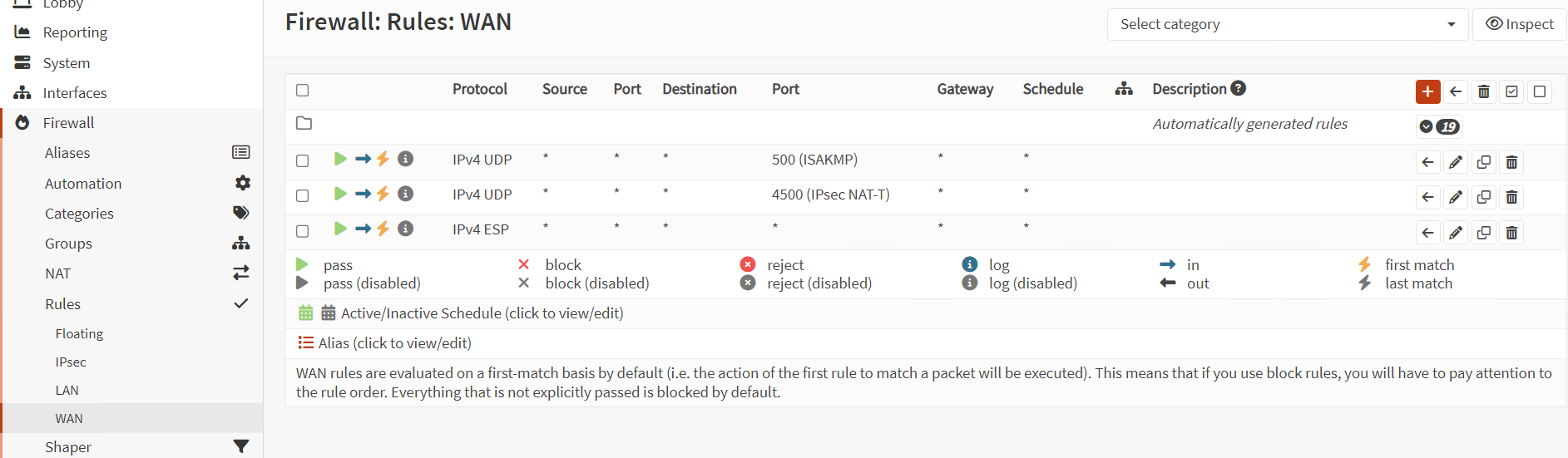

Add the WAN IP Rules

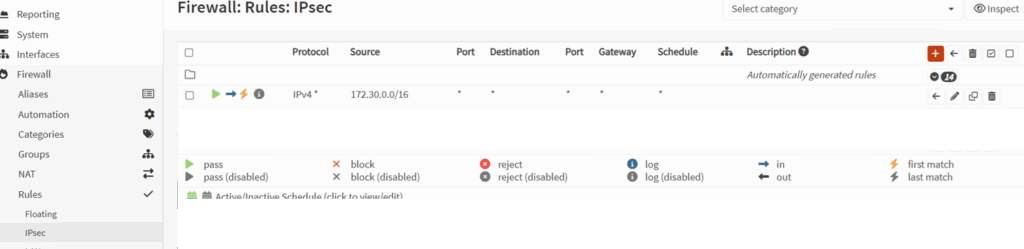

Add the IPSEC Ip rules

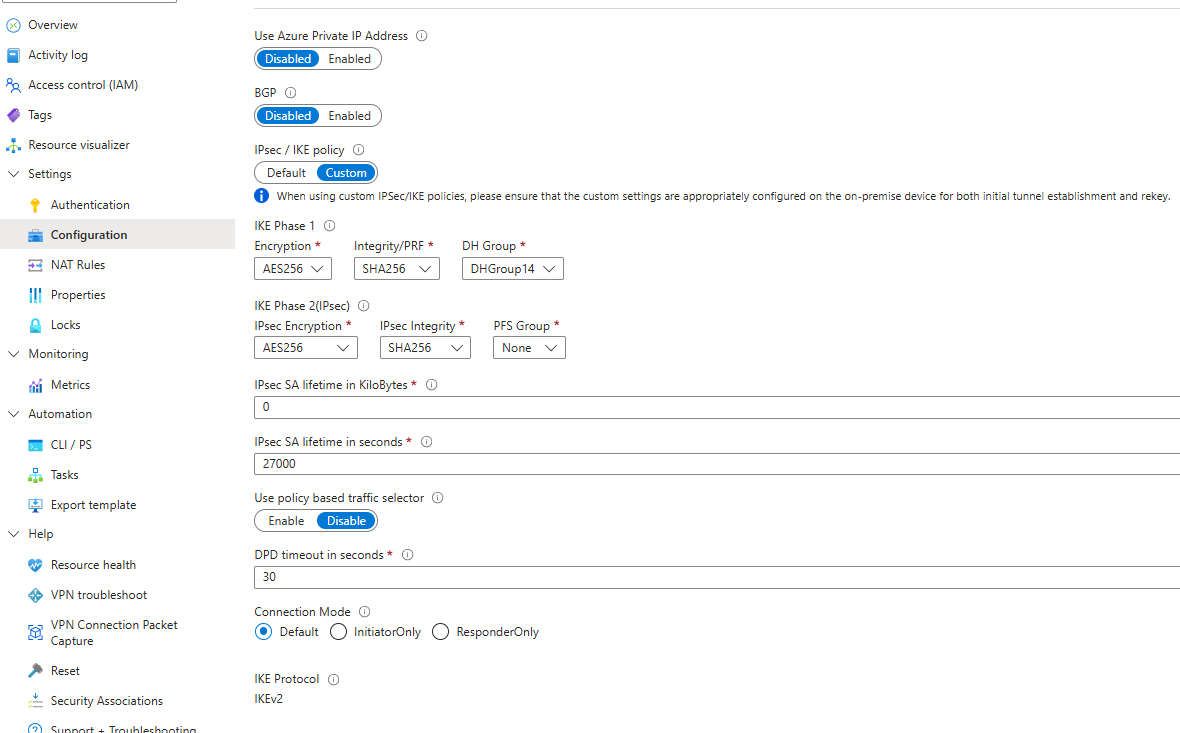

Azure Side

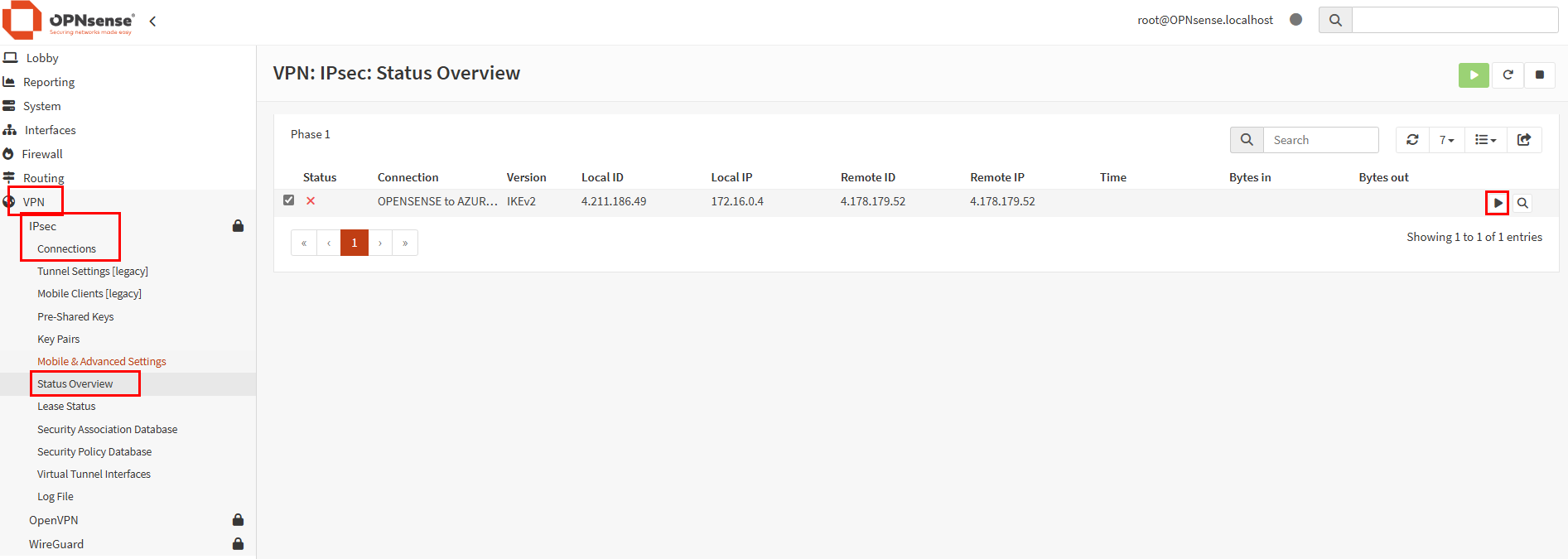

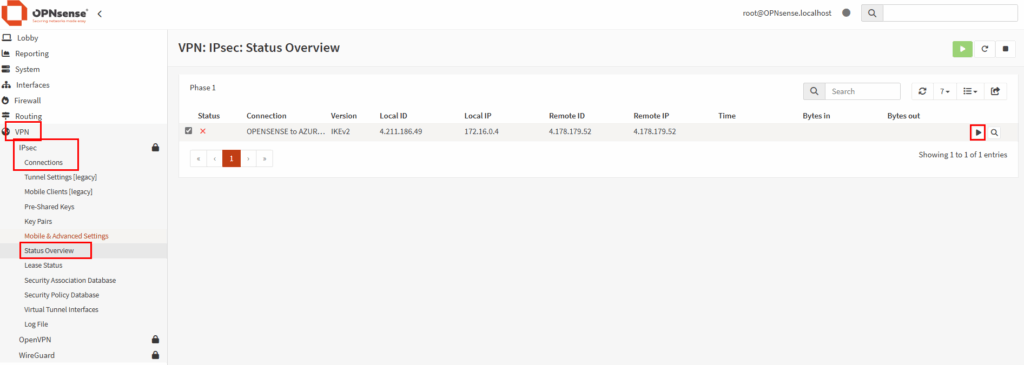

Then use status overview to bring up manually
